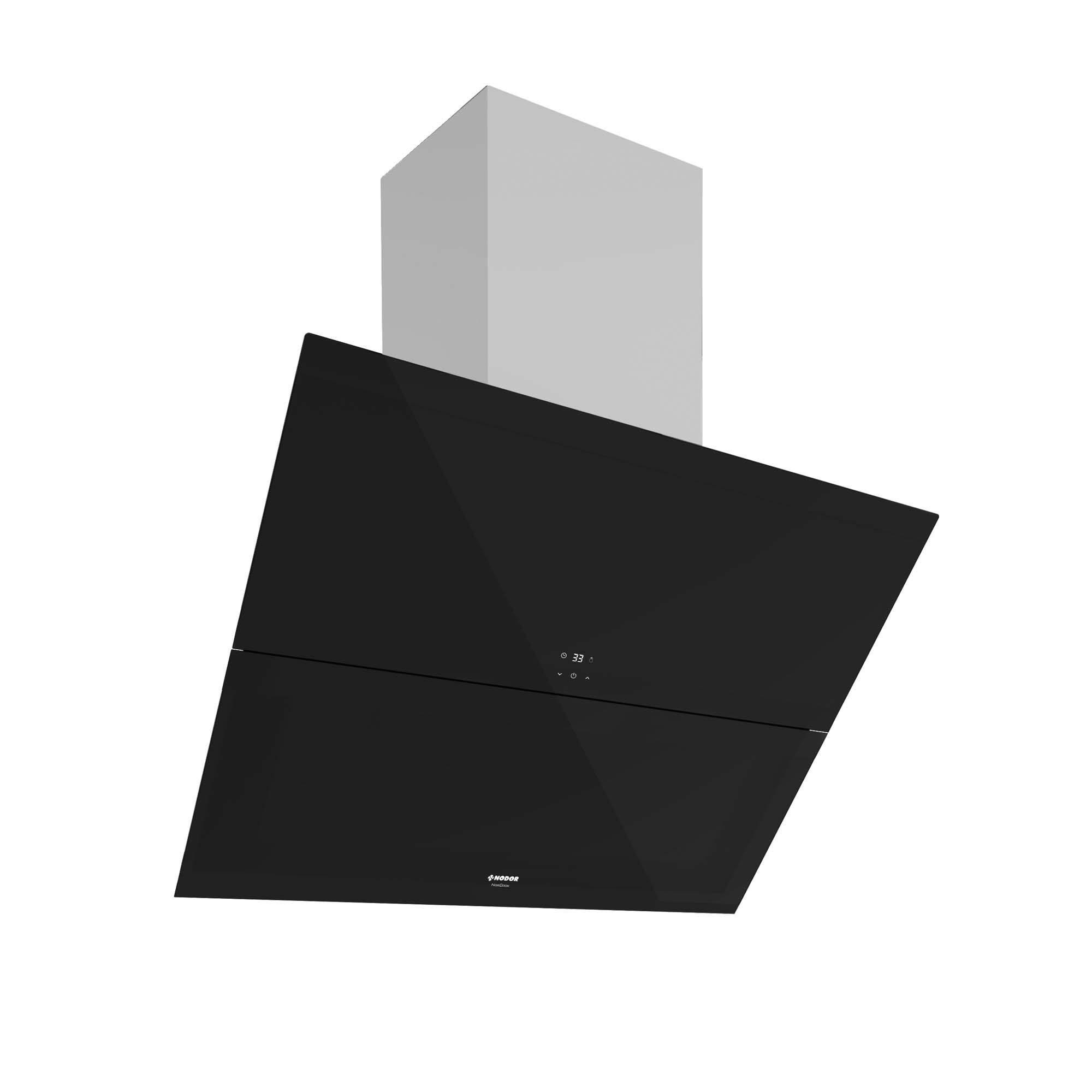

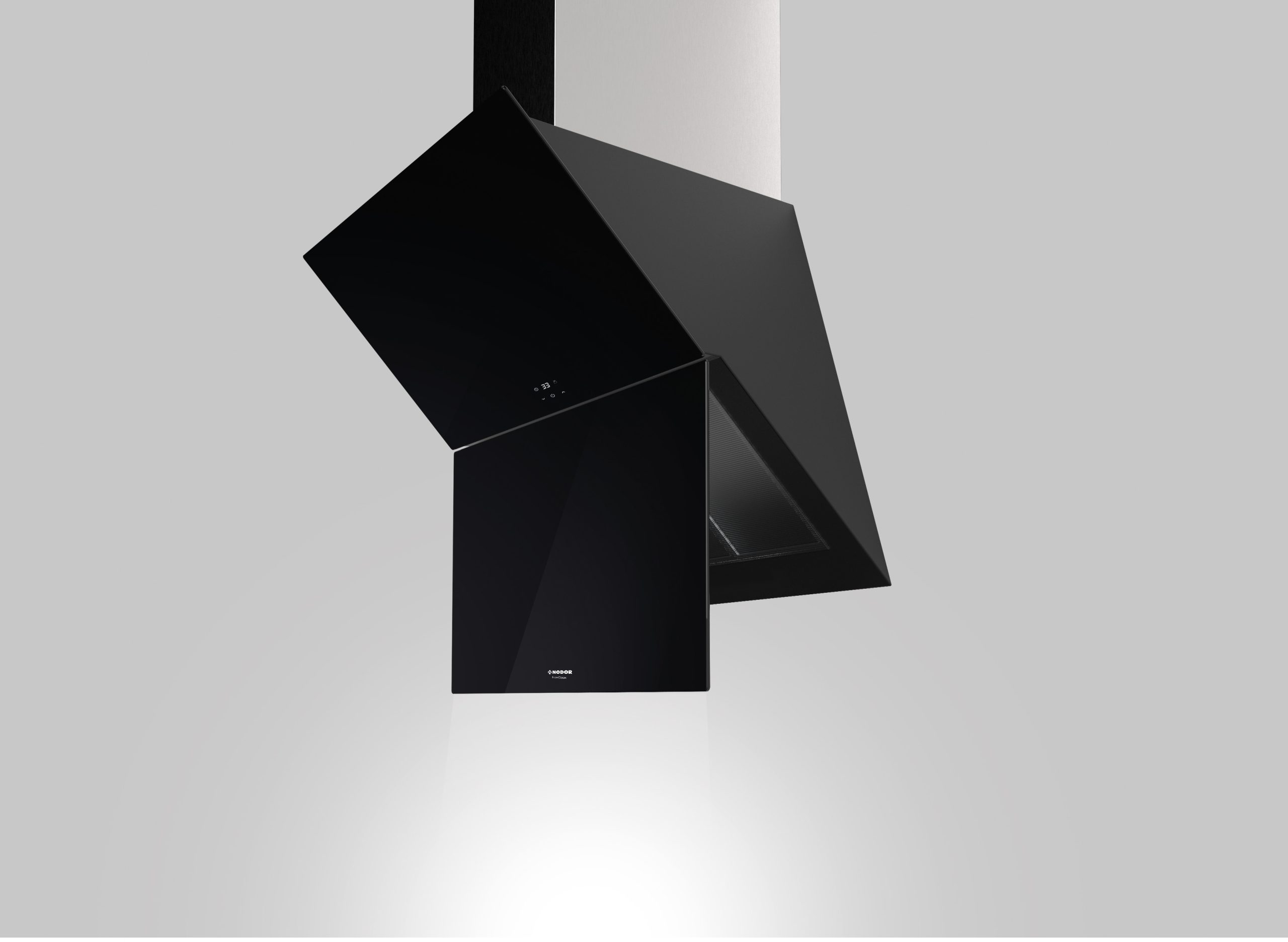

Hood Nodor, MISTRAL 90 DB/A

General Specifications
Type: Chimney Hood (Angle Glass)
Color: Black Glass
Width: 90 cm
Energy Class: A++
Speeds: 6 + Booster
Motor: 1 x BT4DC
Maximum Airflow: 800 m³/h
Minimum Airflow: 255 m³/h
Noise Level: 46 – 64 dB (69 dB Booster)
Lighting: LED Bi-Color
Control: Electronic Touch Control
Air Outlet Diameter: 150 mm

Technical Specifications
Annual Energy Consumption: 22.4 kWh/year
Maximum Pressure: 357 Pa
Rated Power: 140 W
Lighting Power: 5 W
Average Illuminance: 117 lux
Voltage: 220–240 V
Frequency: 50 / 60 Hz

Functions & Benefits
High A++ energy efficiency for reduced energy consumption
Powerful extraction for efficient removal of odors and steam
Booster function for rapid air purification
Filter saturation indicator for easy maintenance
Charcoal filter replacement indicator
Dimmer lighting function for adjustable brightness
Can operate with air extraction or recirculation
Multi-layer aluminium filters, dishwasher safe
Modern glass design for easy cleaning

Dimensions
Width: 89.5 cm
Depth: 40.3 cm
Height (Min – Max): 85.6 – 119.6 cm
Air Outlet Diameter: 15 cm
